System introduction
Huaxia Tianxin Intelligent Tunneling System is an intelligent management and control platform and collaborative control system that takes the whole heading face as the object, and realizes "fewer people" and "remote visual control" of the heading face through the construction of full-parameter and multi-system fusion linkage of the working face. Through this system, the three-dimensional simulation expression of the real scene of the heading face can be realized, and the three-dimensional model can be dynamically updated. "One-key start-stop" and multi-machine coordinated control of complete sets of equipment such as tunneling, anchoring, supporting, transportation and communication in tunneling face; space positioning, attitude display and automatic deviation correction of tunneling and anchoring integrated machine; anti-collision alarm of equipment, coordinated control of shutdown; alarm of personnel approaching beyond the limit and dangerous areas of equipment operation; The real-time trajectory and deviation of the cutting head of the roadheader are displayed. In addition, the system responds to the construction content of the national intelligent mine and meets the requirements of the relevant scoring indicators of the tunneling system.
Product Features
The main functions include: 3D tunneling system construction and adjustment, "one-key start and stop" and multi-machine collaborative control, space positioning, attitude display and automatic correction of the tunneling and anchoring integrated machine, equipment anti-collision alarm, shutdown collaborative control, real-time trajectory and deviation display of the cutting head of the tunneling machine, etc.

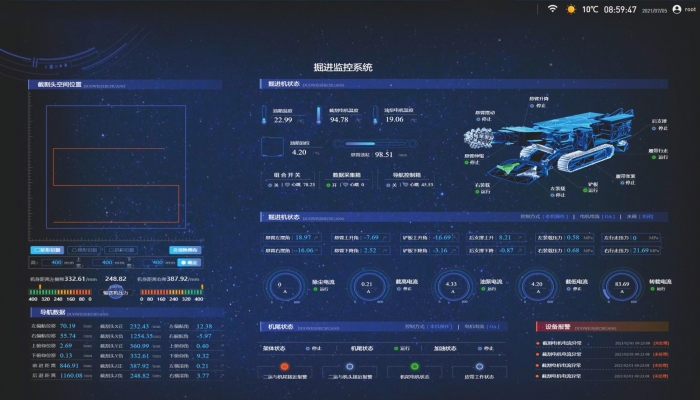

System home page

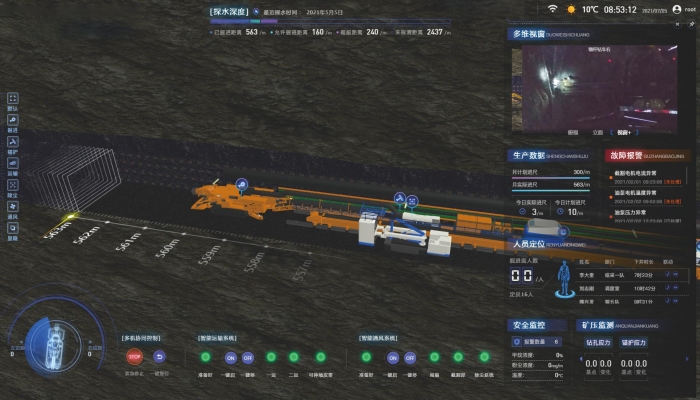

Tunneling configuration

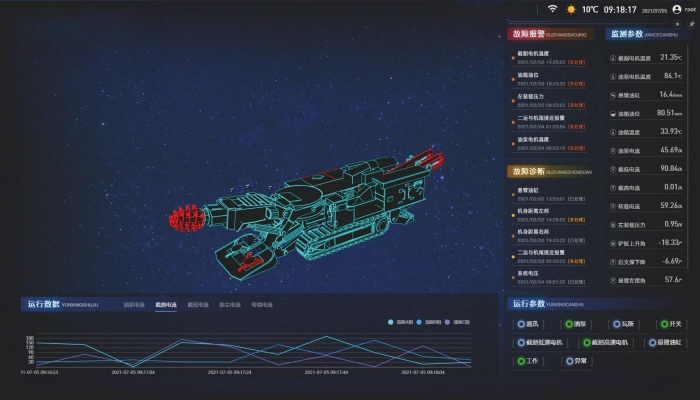

Fault diagnosis

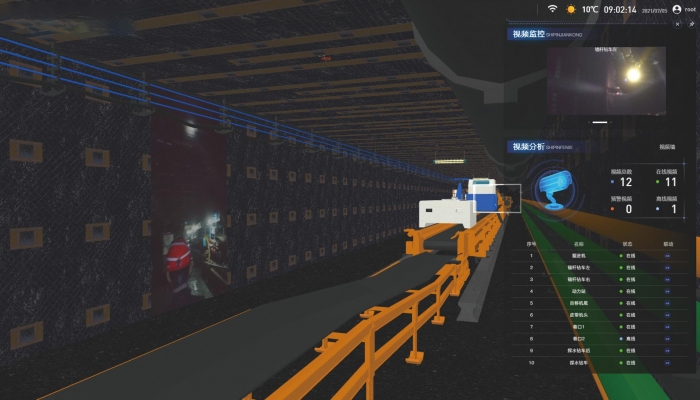

Video fusion
